Rectangle honeycomb flow net
Product Details
Physical properties
Material | Polypropylene |
Color | White ,Black,Gray |
Cell Diameter (mm) | Φ4-Φ10.0 |
Compressive Strength （MPa） | 1.4-2.4 |
Bending Strength (Mpa) | 0.5-0.6 |
Density （kg/m³） | 80--180kg/m³ |
Effective Temperature(℃) | -40℃ -- +120℃ |
Thermal Conductivity (w/mk10℃) | 0.061 |
Size | Size: 1250mm × 500mm (Custom sizes available) |
Advantage
- Even Cooling, No Cold or Hot Spots
Maintains uniform temperature in refrigerators for better food preservation—no frozen items near vents or spoiled food in corners.
- Prevents Frost and Water Build-up
Balances inner surface temperature to avoid localized overcooling, eliminating condensation, ice, and puddles. Keeps the interior dry and reduces defrosting needs.
- Strong and Durable
Reinforces structural integrity, resists deformation from load or temperature changes, and extends product life.
- Lightweight and Energy-Saving
Supports lightweight appliance designs. Improves cooling efficiency, reduces compressor workload, and saves energy.
- Safe and Cold-Resistant
Food-safe material with strong low-temperature performance, ensuring long-lasting and reliable operation.
Material Showdown: PP vs. PVC vs. PC
| Feature | PP (Polypropylene) | PVC (Polyvinyl chloride) | PC (Polycarbonate) |
| Food safety | Excellent (odorless) | Poor(odors) | Good (BPA Risk) |
| Cold Resistance | Excellent(stays Flexible) | Poor(Turns Brittle) | very Good |
| Cost & Value | Best Value | False Economy | Overpriced |
| Eco-Friendliness | Good(Recyclable) | Poor(Toxic) | Fair |

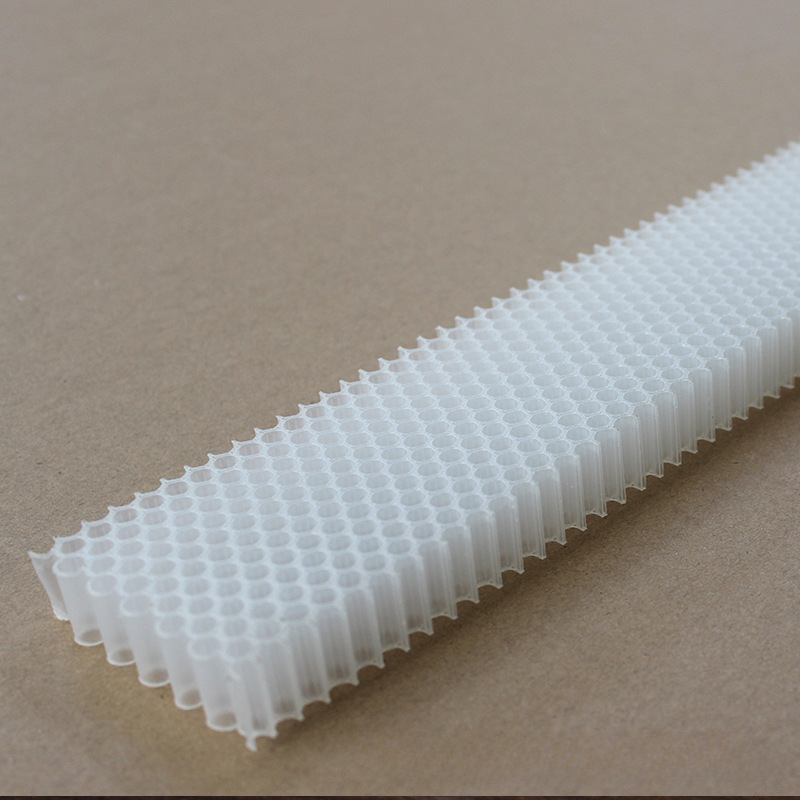

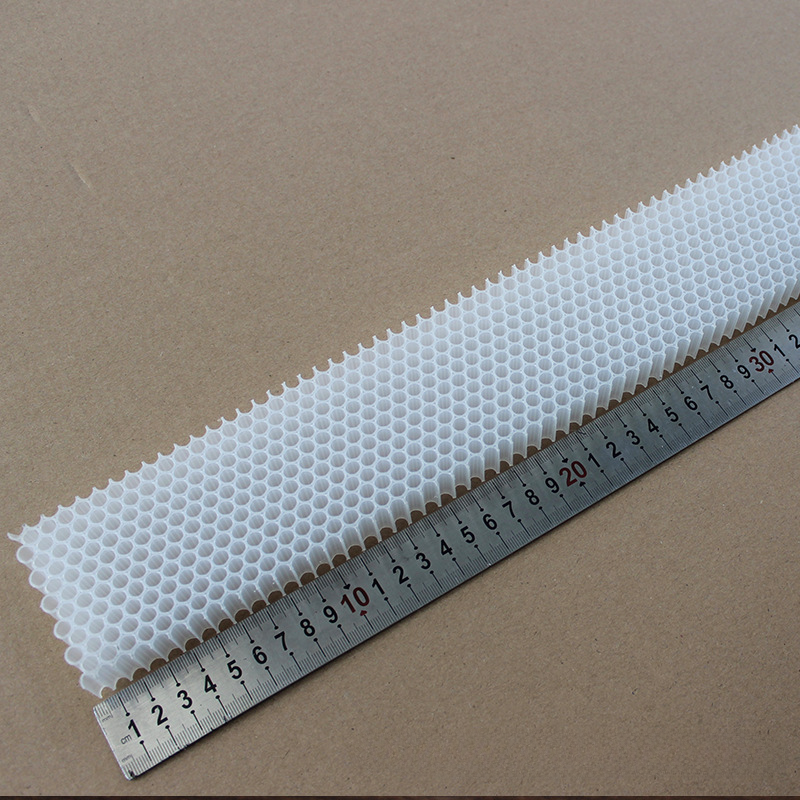

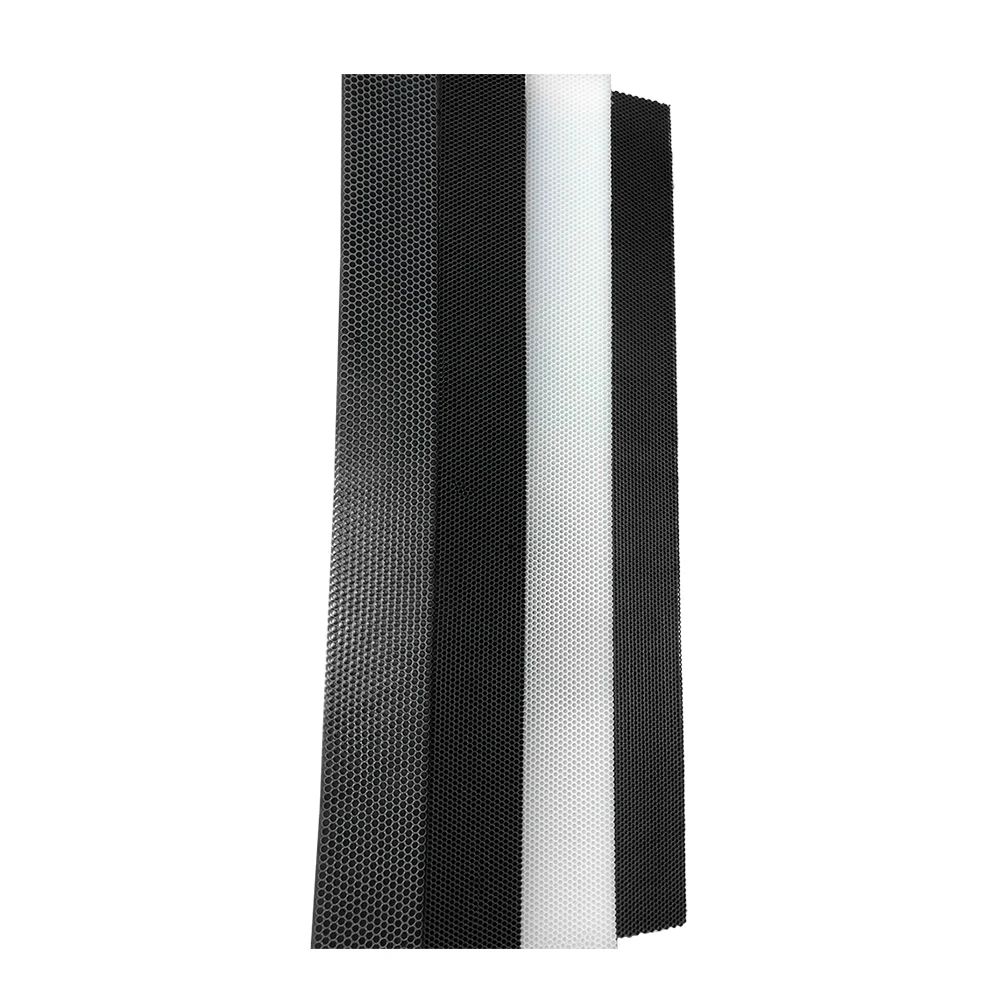

Product Pictures
